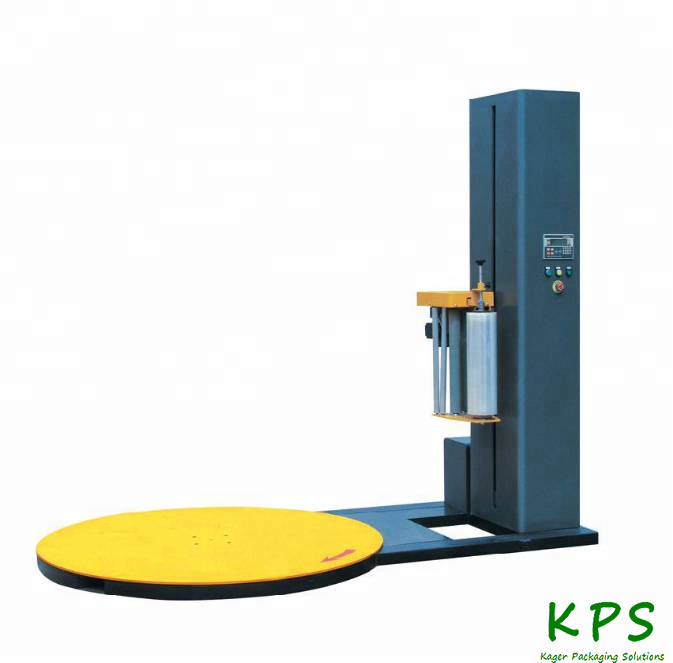

Model | T1650F |
Turntable diameter | 1650mm |
Max.wrapping height | 2000mm |
Max.Loading | 2000kgs |

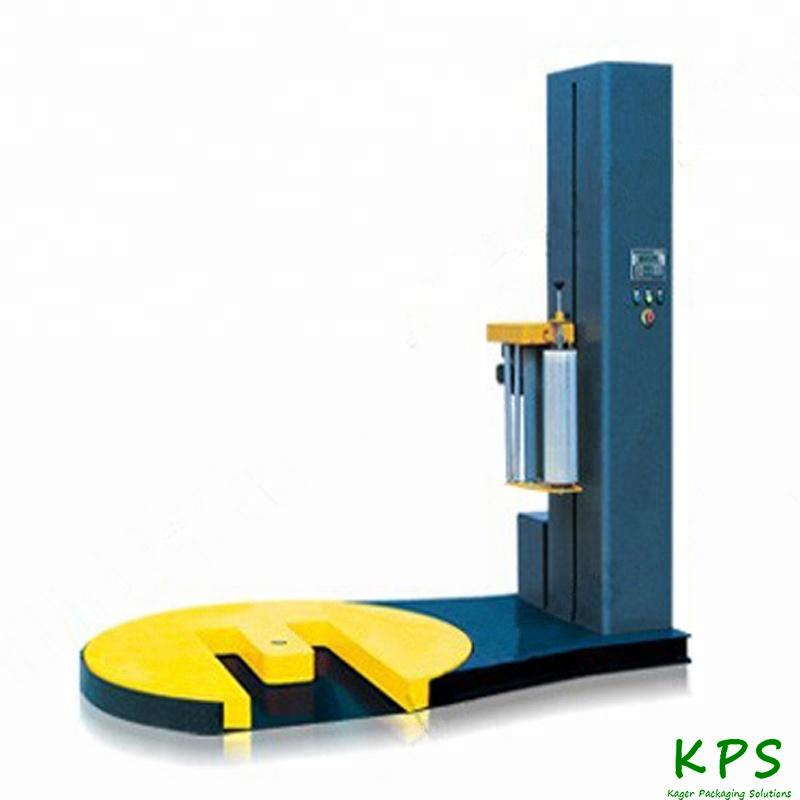

With Ramp | optional |
Voltage | 110/220/240V 1phase 220/380/415V 3phase 50HZ/60HZ |
Machine size | L2545*W1650*2280mm |
Machine weight | 620kgs |
H.S | 84224000 |
Approved CE/BV | yes |
Machine Features:
•Limit built-in
•2000mm wrapping height
•2000kgs loading
•Spring break stretch
•Home position: the turntable always stops at the same position
•Speed control on turntable
•Choose between 1 & 9 top and bottom wraps with re-enforce wrap
•Up & down or up only wrap cycle
•Semi auto and manual wrap options
•Adjustable pallet height photo sensor
•Secure Top Sheet Function
•Lockable control panel
•Adjustable tension with quick release
•Soft start and stop
•Machine can be paused during cycle
•Magnetic brake holds turntable still during loading/unloading
•Audible warning when running a cycle
